BIKE REPAIR POINT – IBOMBO HOKO

Polish product

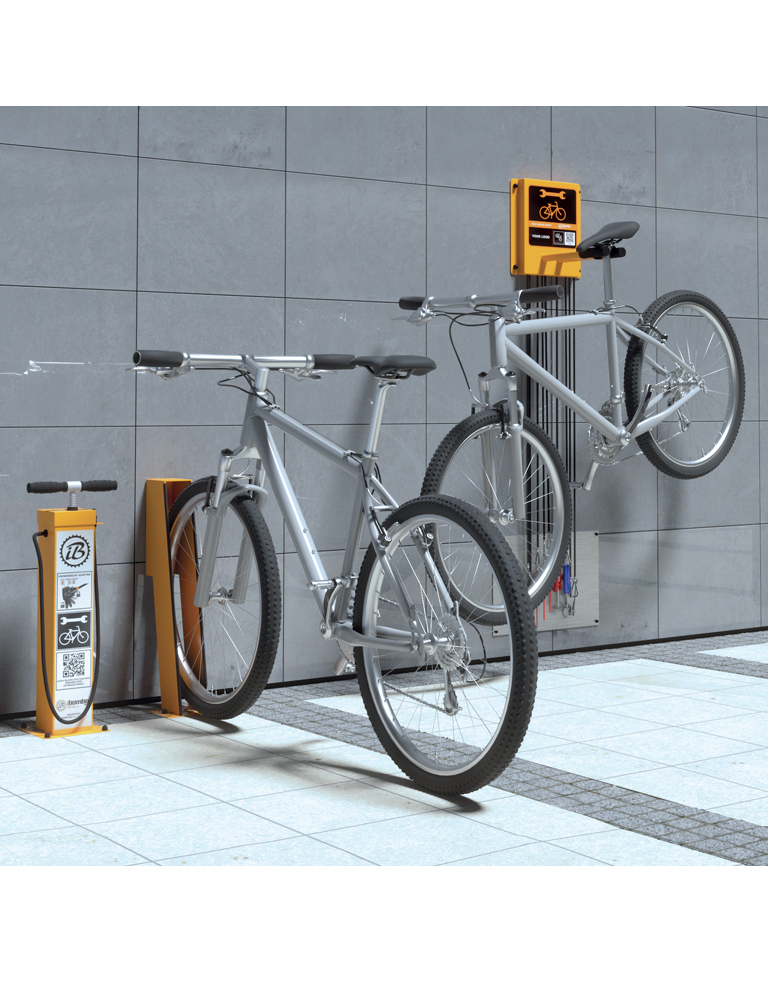

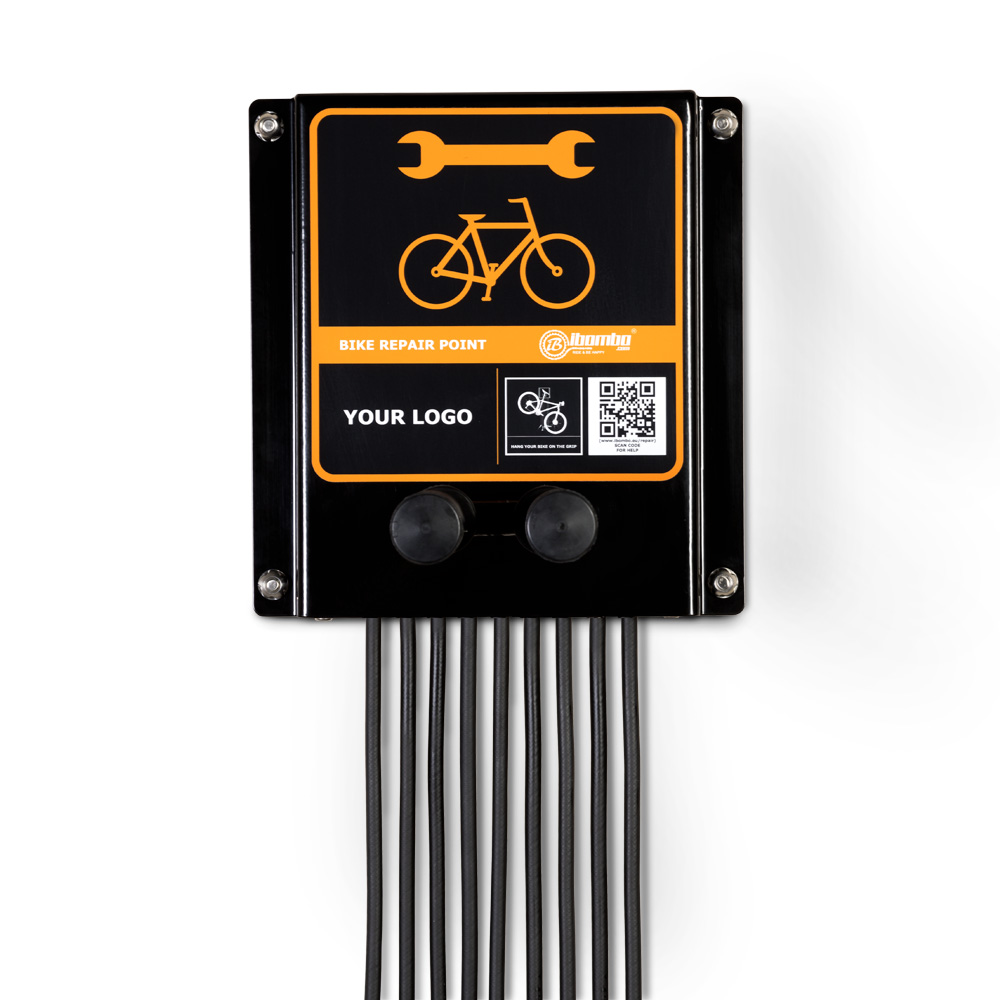

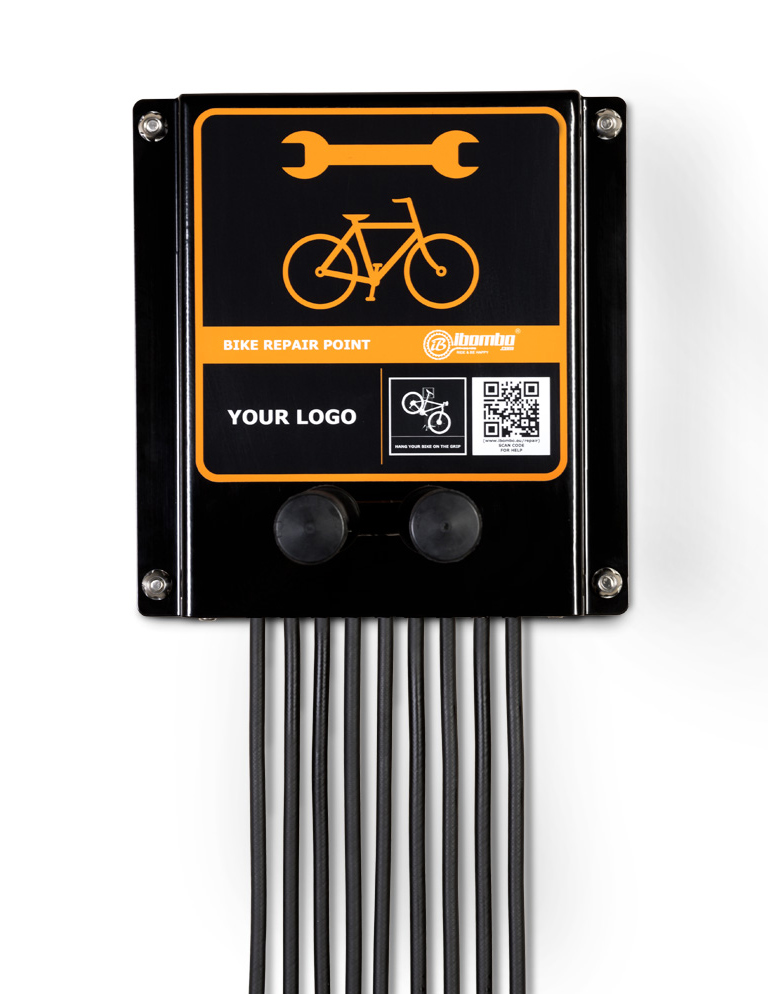

Bike Repair Point – IBOMBO HOKO is suitable for public spaces. It is designed for both: indoor and outdoor use and dedicated for small spaces. It is made of galvanized steel with powder or thermoplastic coating. The device is designed for wall mounting.

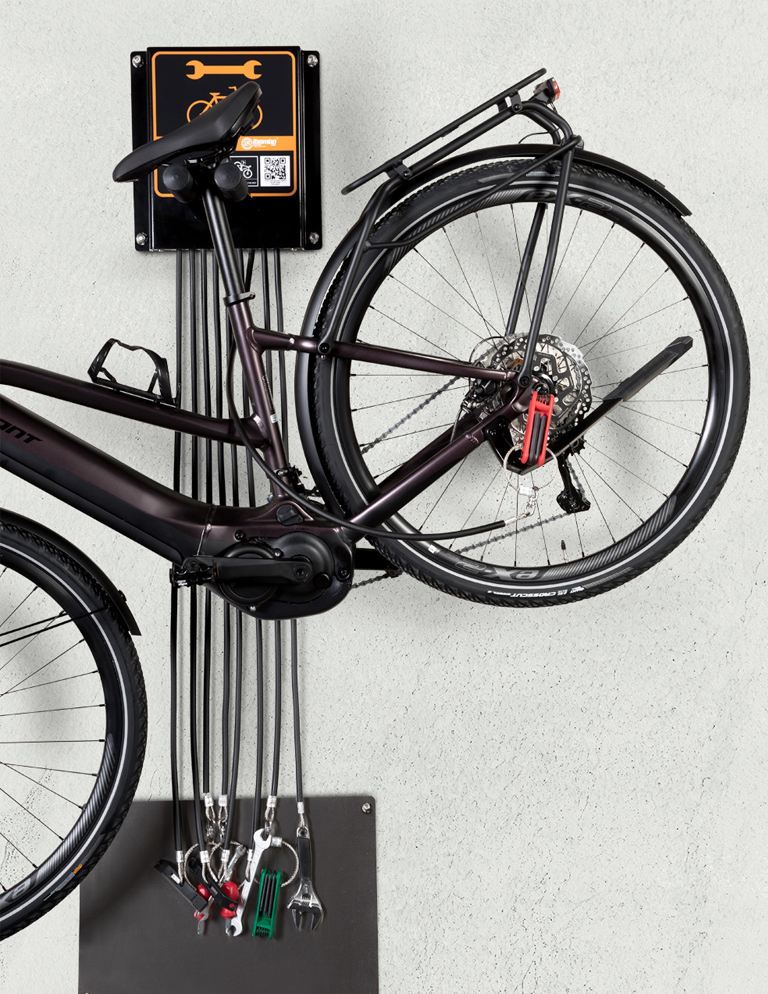

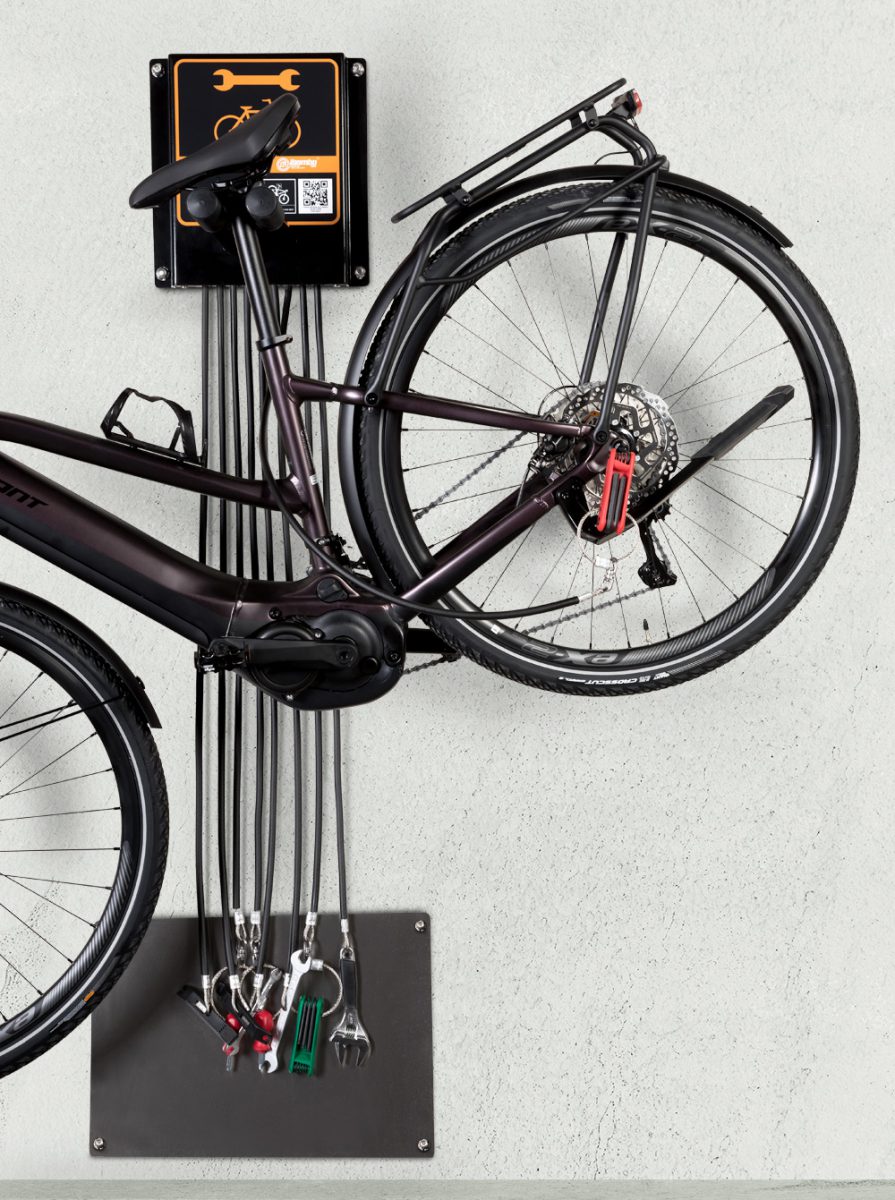

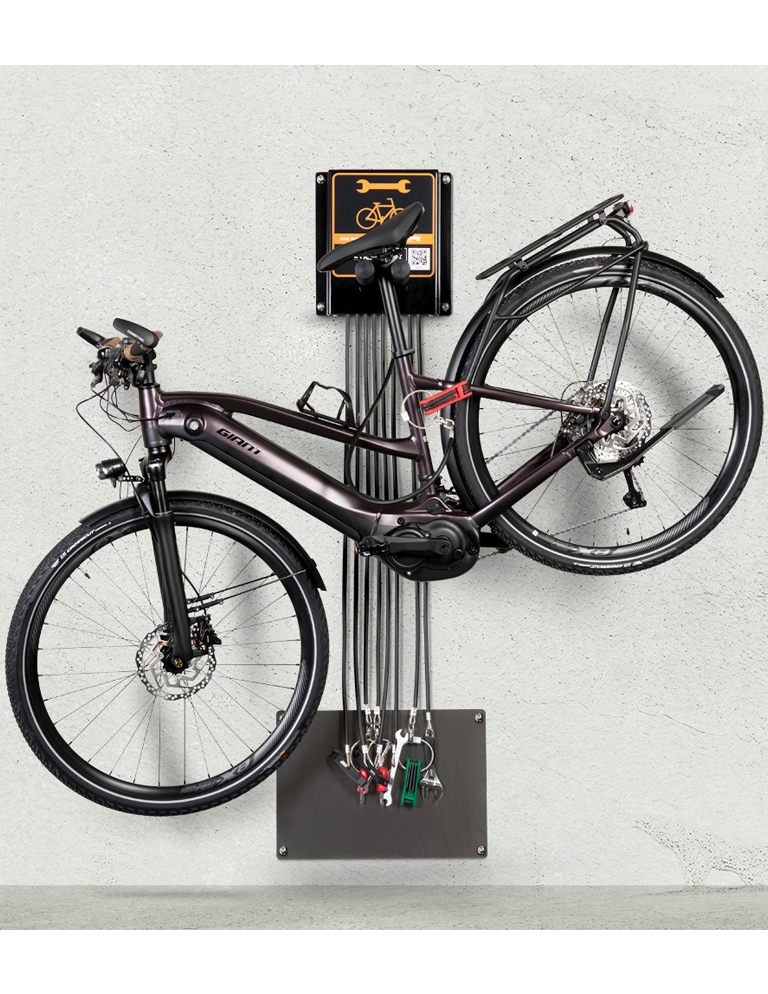

Sheet metal elements of the device are fastened with anti-theft screws. The construction of the station allows you to place the bicycle on the grip, so you can easily turn the crank while repairing the bike.

The tools are attached to the stainless steel ropes hanging from the device; the length of the ropes allows you to reach all bicycle components. The rubber coating of the ropes prevents tools from tangling and protects the bicycle frame from scratching. Wall bumper plate made of brushed INOX stainless steel (AISI 304) protects the wall against dirt and damage.

QR CODE placed on the front panel enables an immediate access to online publications containing repair manual.

This product can be additionally equipped with, among others, IBOMBO PRS-sV1 pump and Side-or- back bike stands.

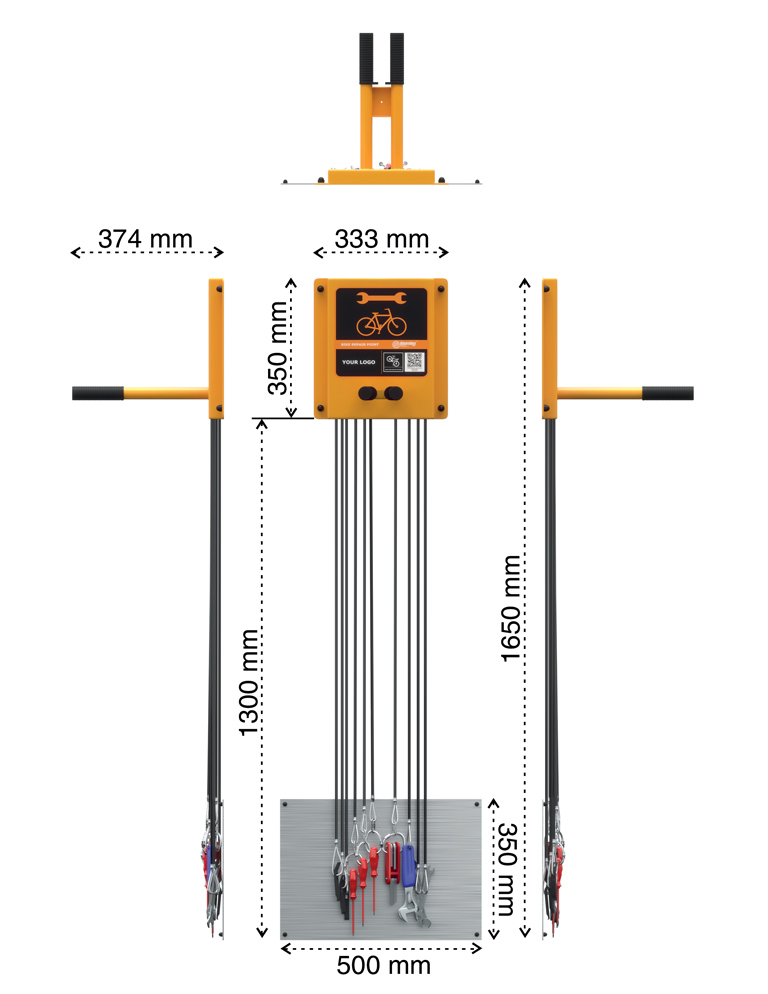

Dimensions:

33 x 35 x 37 cm

Weight:

10 kg

Advertising area:

up to 625 cm2

Material:

galvanized
Ask for price
  • housing made of galvanized steel
  • powder or thermoplastic coating
  • up to 625 cm2 of advertising area
  • QR CODE with repair manual Galeria

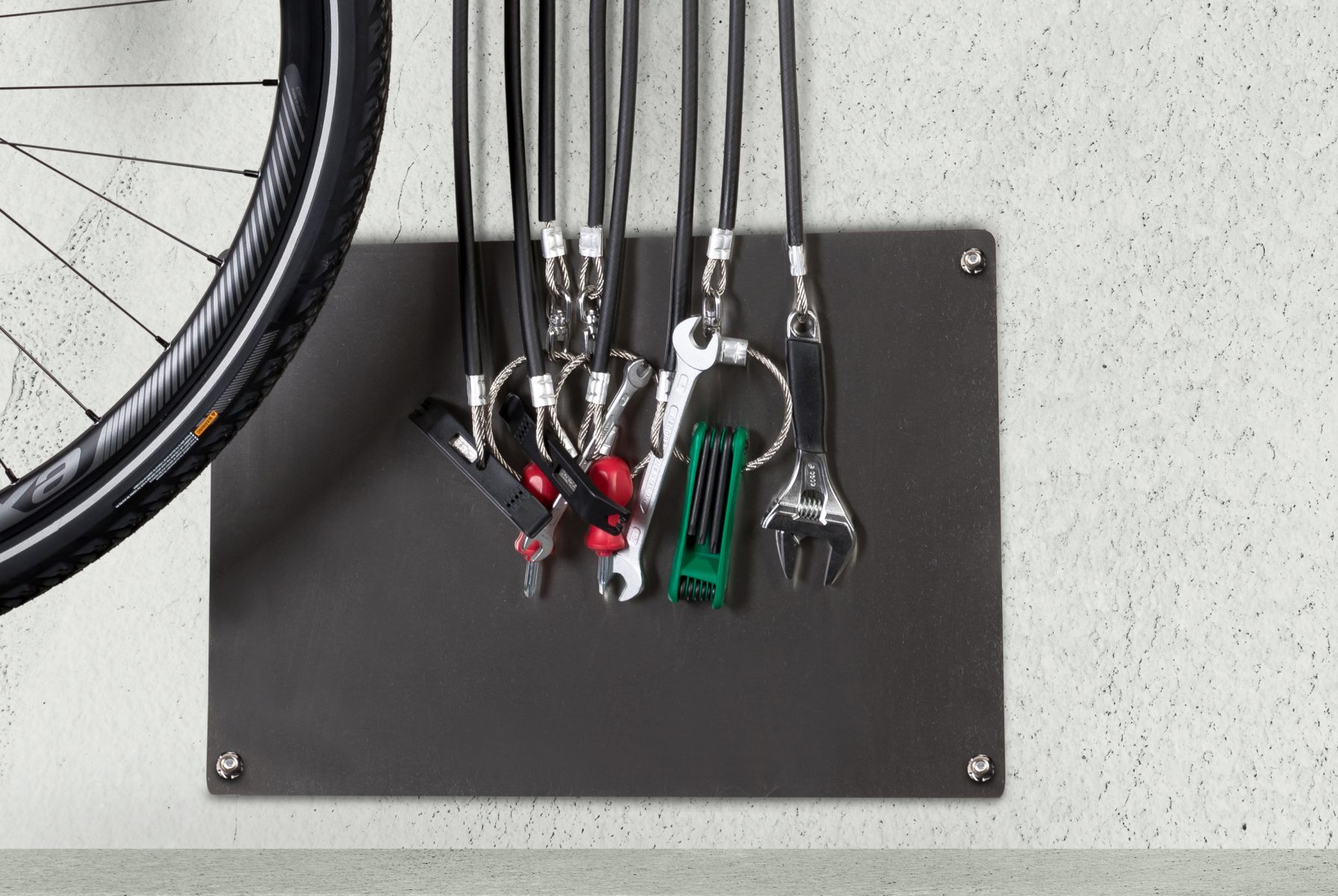

  • wall bumper plate made of Inox stainless steel (AISI 304)Galeria

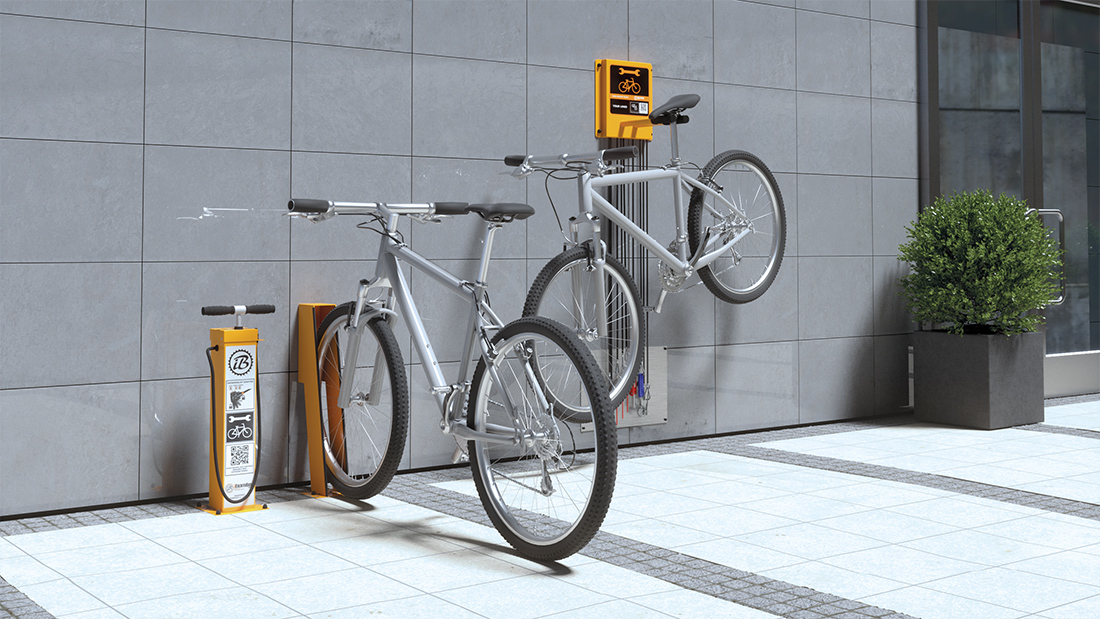

  • Big Side-or-back bike stand – powder coated Galeria

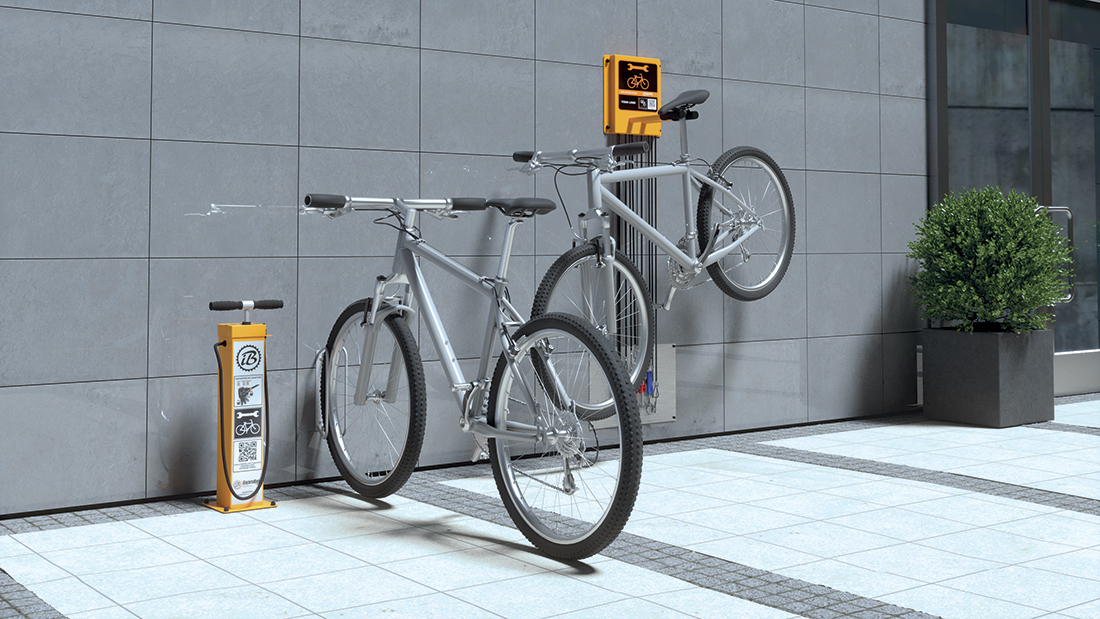

  • Small Side-or-back bike stand - stainless steel (AISI 304)Galeria
  • anti-theft stainless steel nuts (AISI 304) with a patent key for mounting the baseGaleria

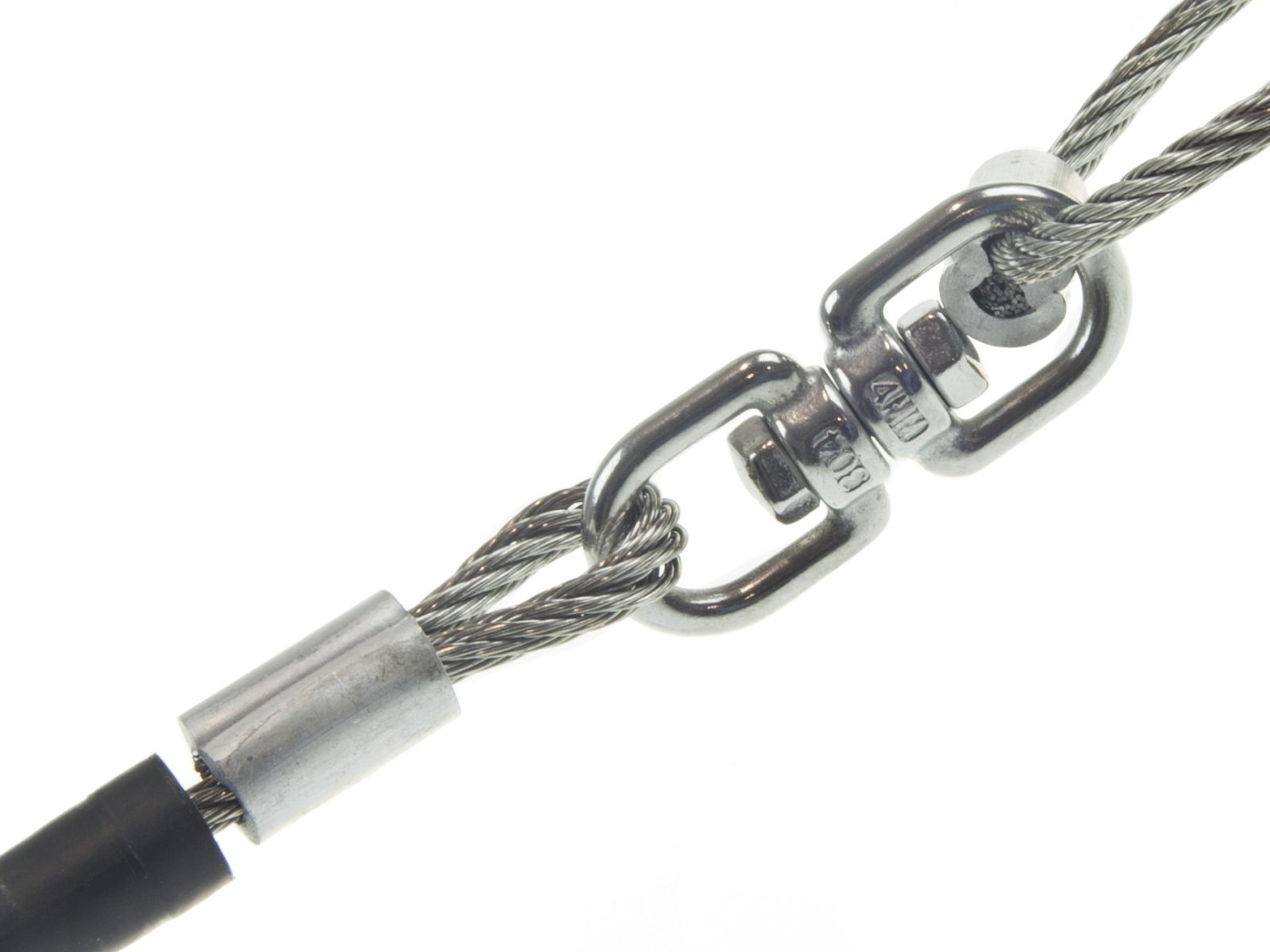

  • stainless steel ropes fi 4 (AISI 316) with rubber coating fi11Galeria

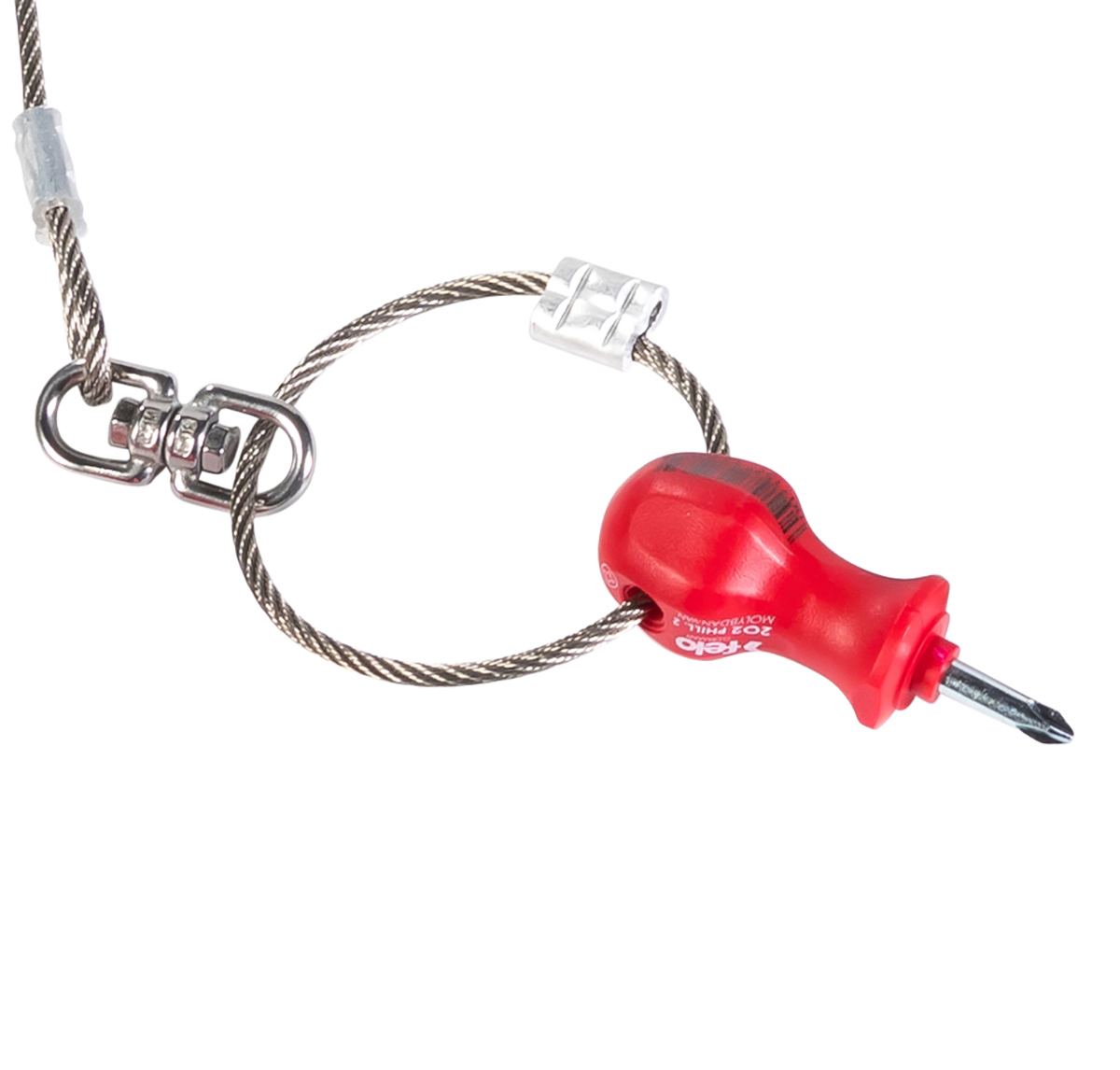

  • Phillips screwdriver PH2 + swivel fi4 (AISI 304)Galeria

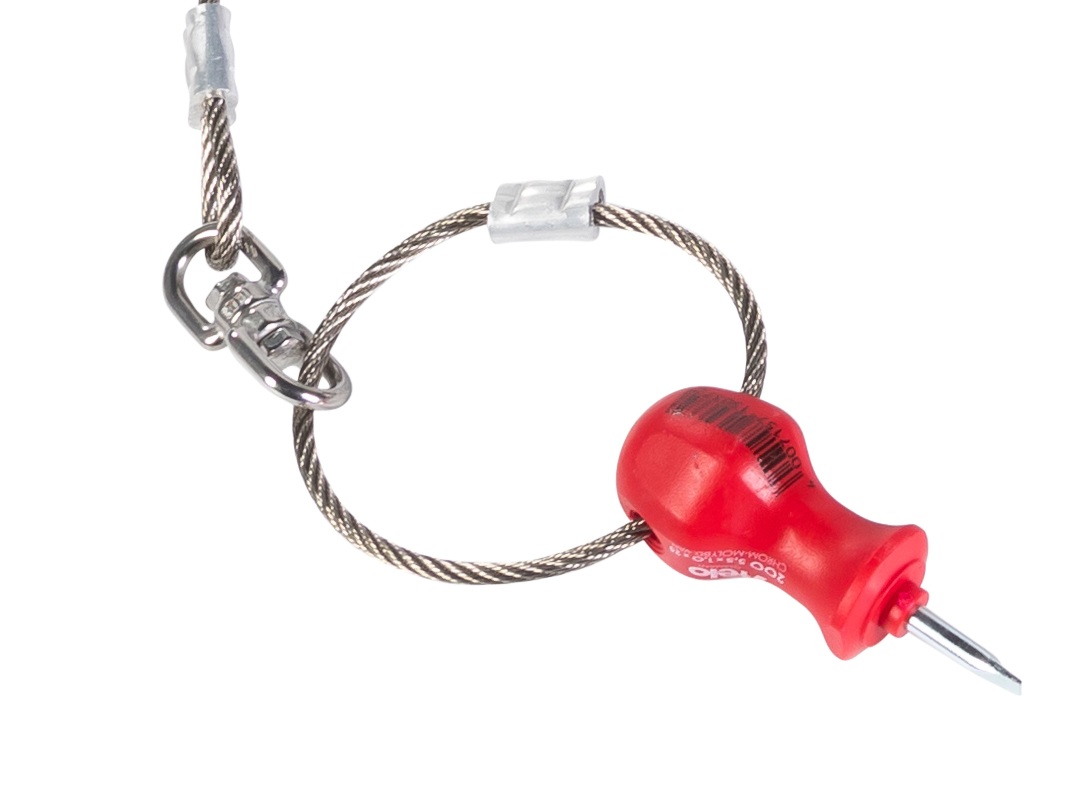

  • flat screwdriver 5.5 x 1.0 + swivelGaleria

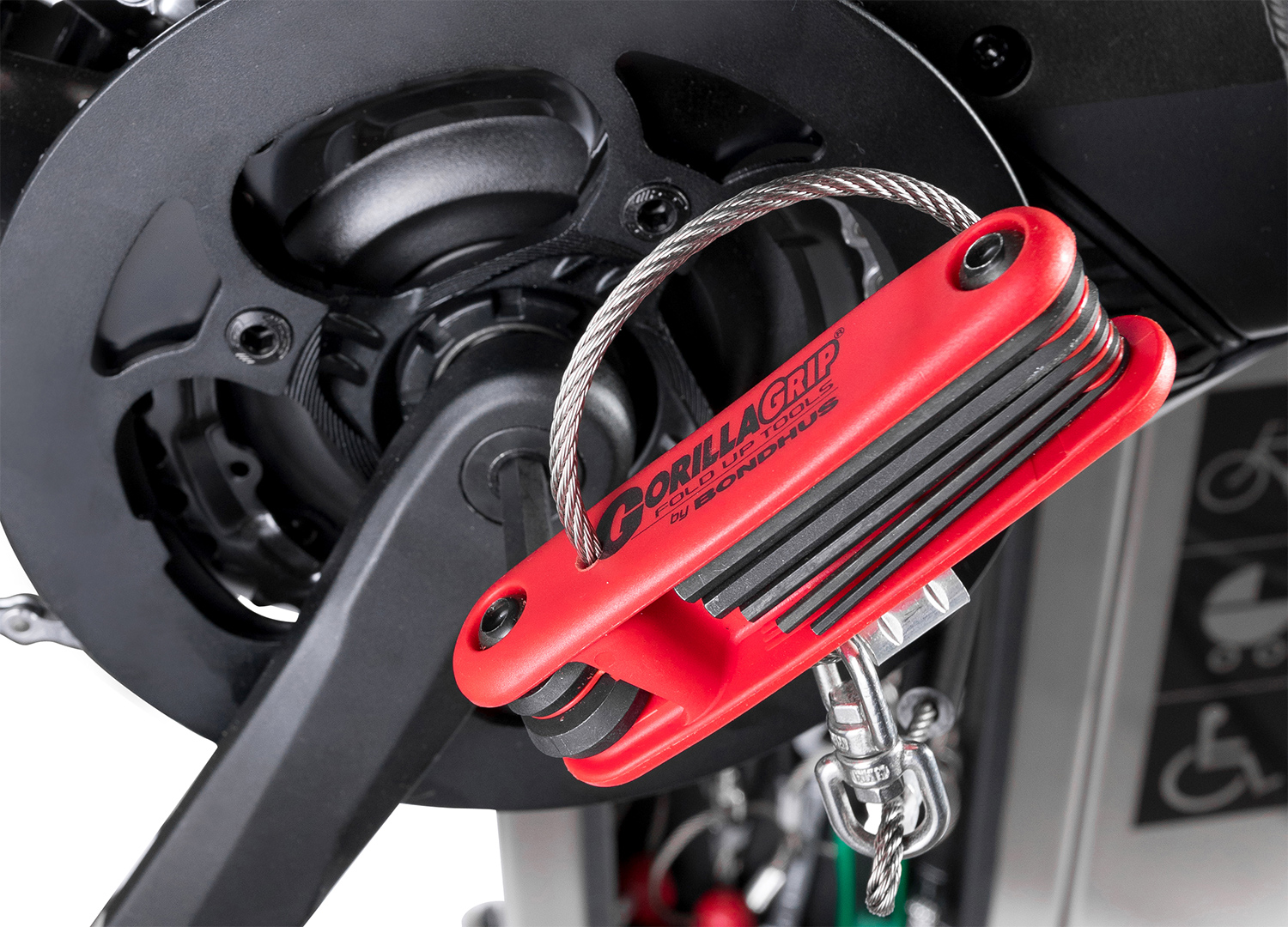

  • hex key set| 2 | 2.5 | 3 | 4 | 5 | 6 | 8 | + swivelGaleria

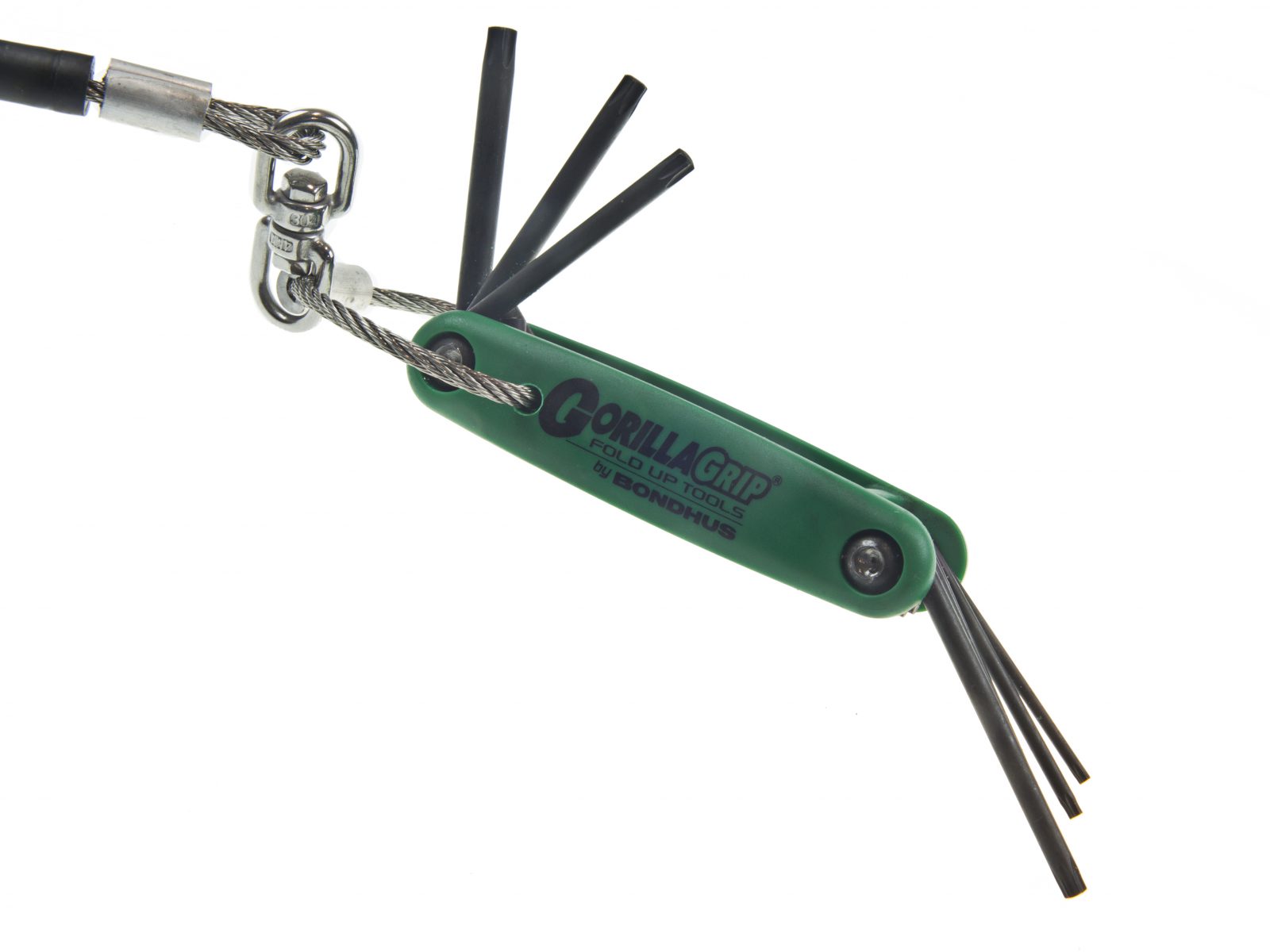

  • TORX key set | 9 | 10 | 15 | 20 | 25 | 27 | 30 | 40 | + swivelGaleria

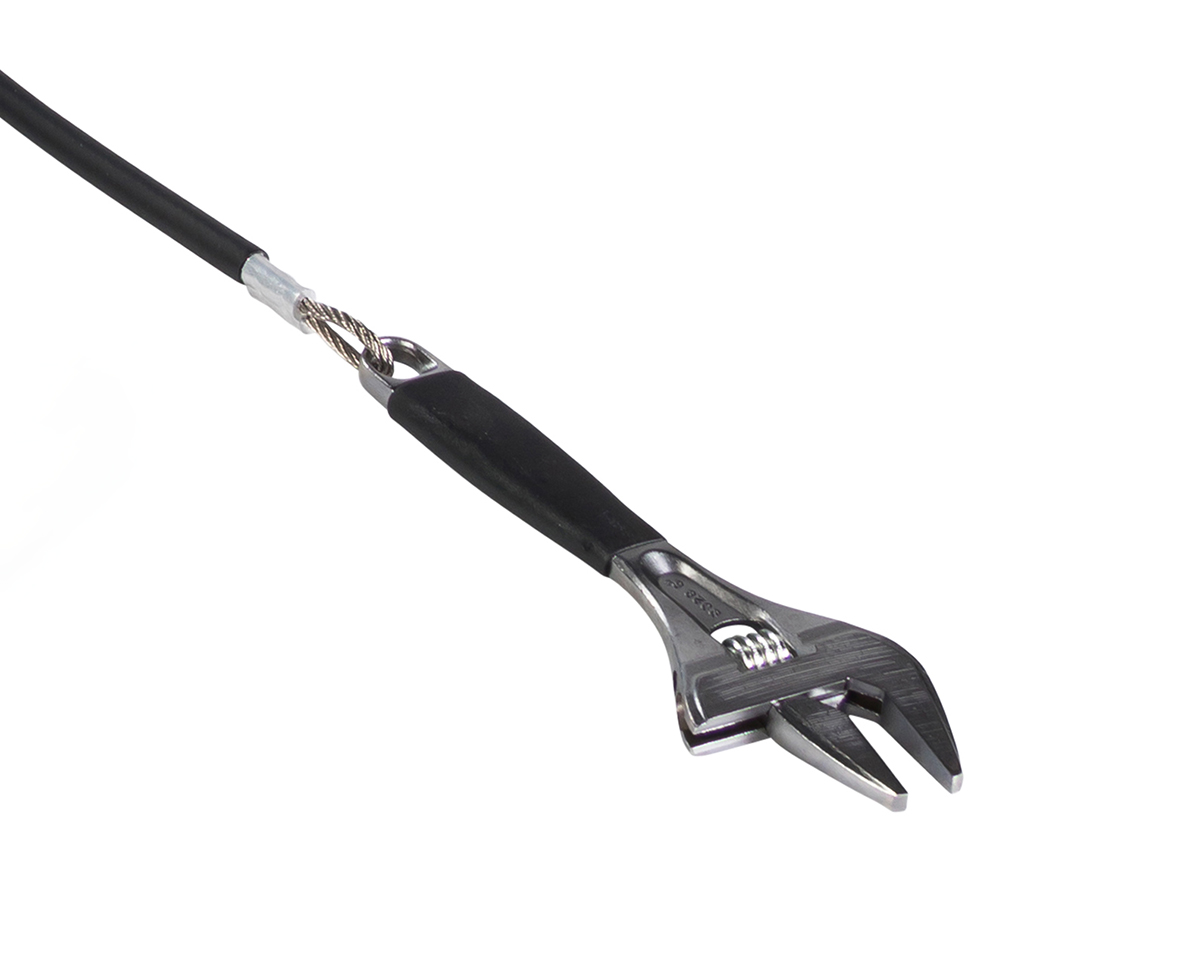

  • adjustable spanner 0-32 mmGaleria

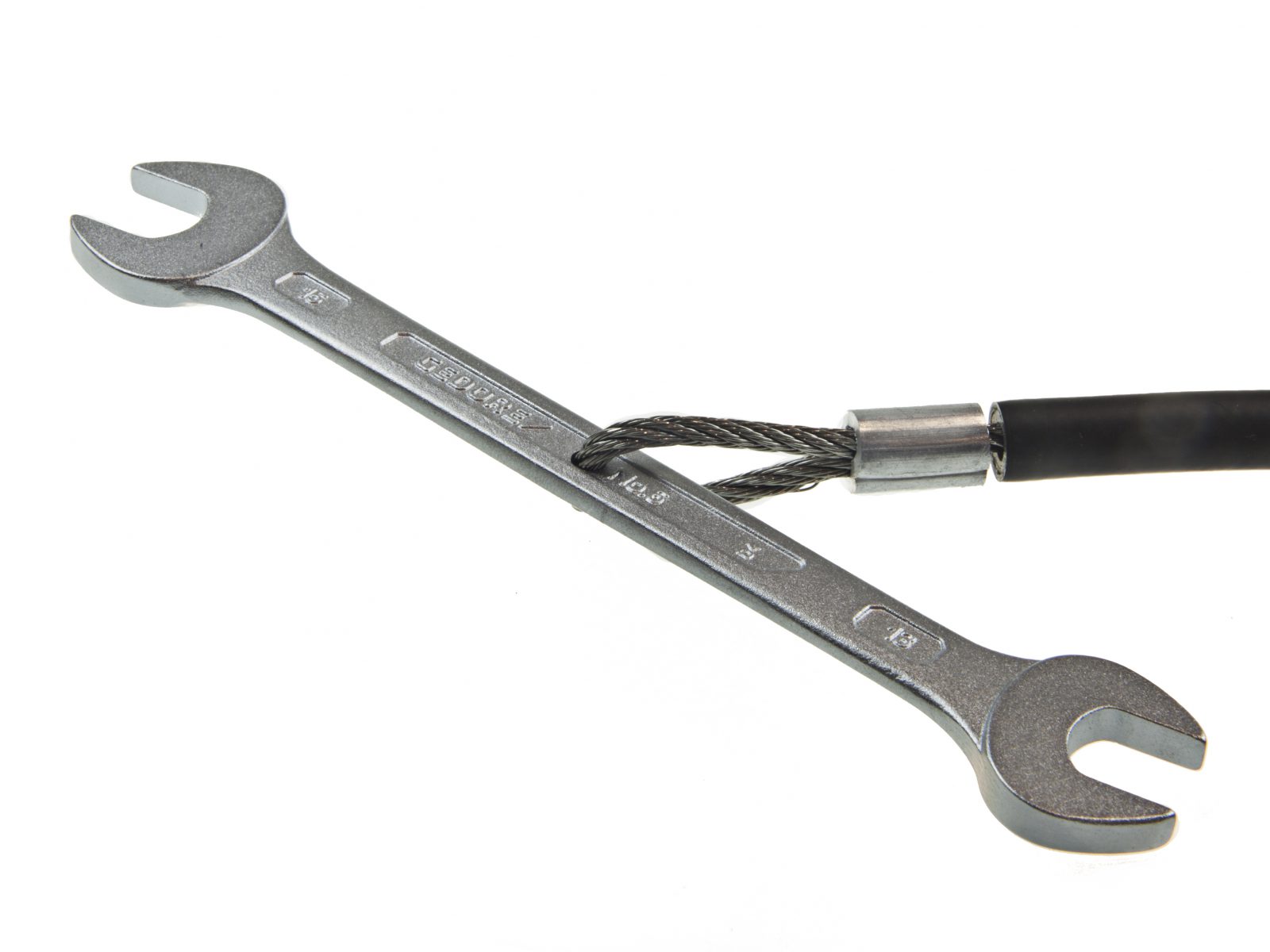

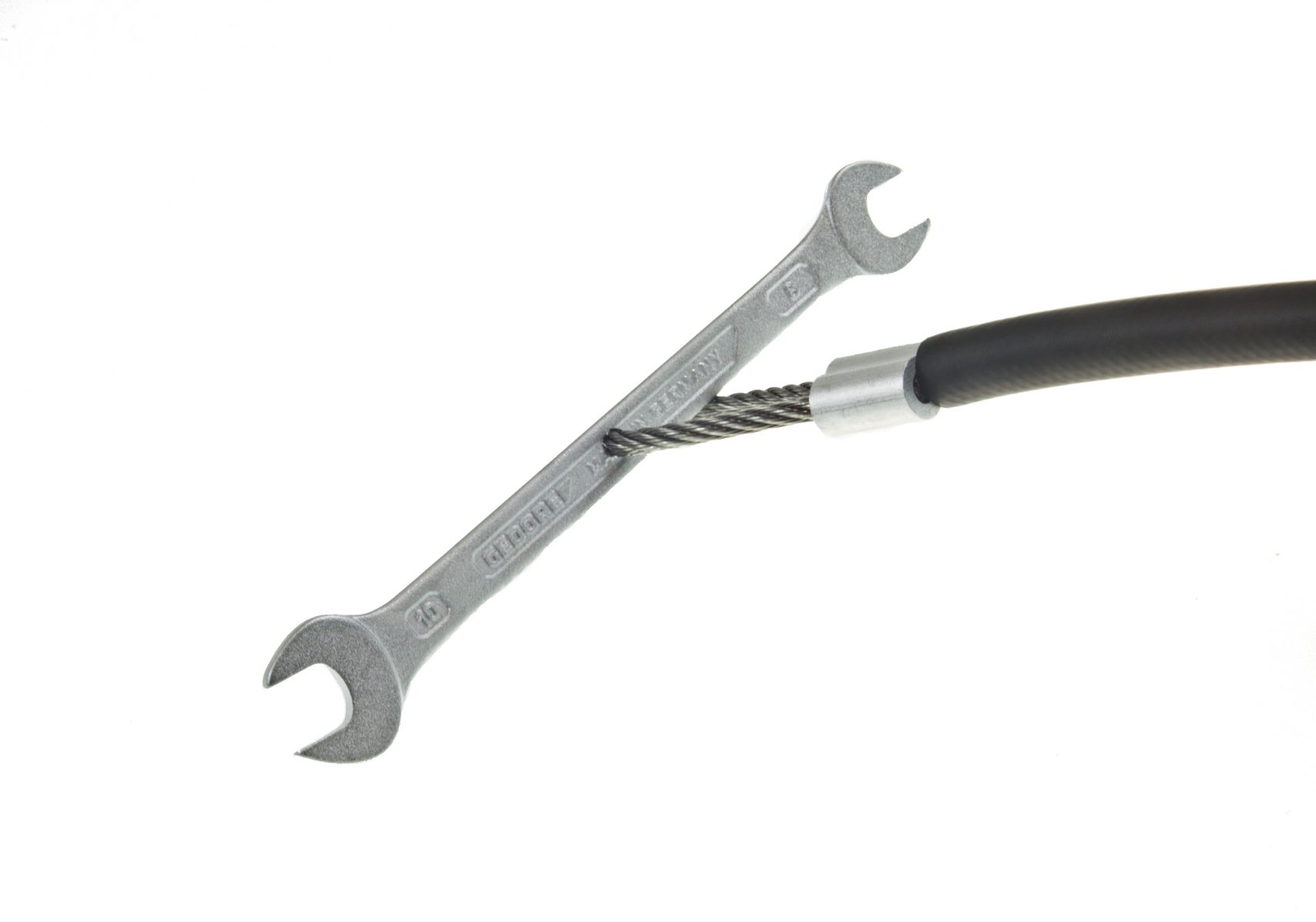

  • flat spanner 8x10 mm and 13x15 mm Galeria

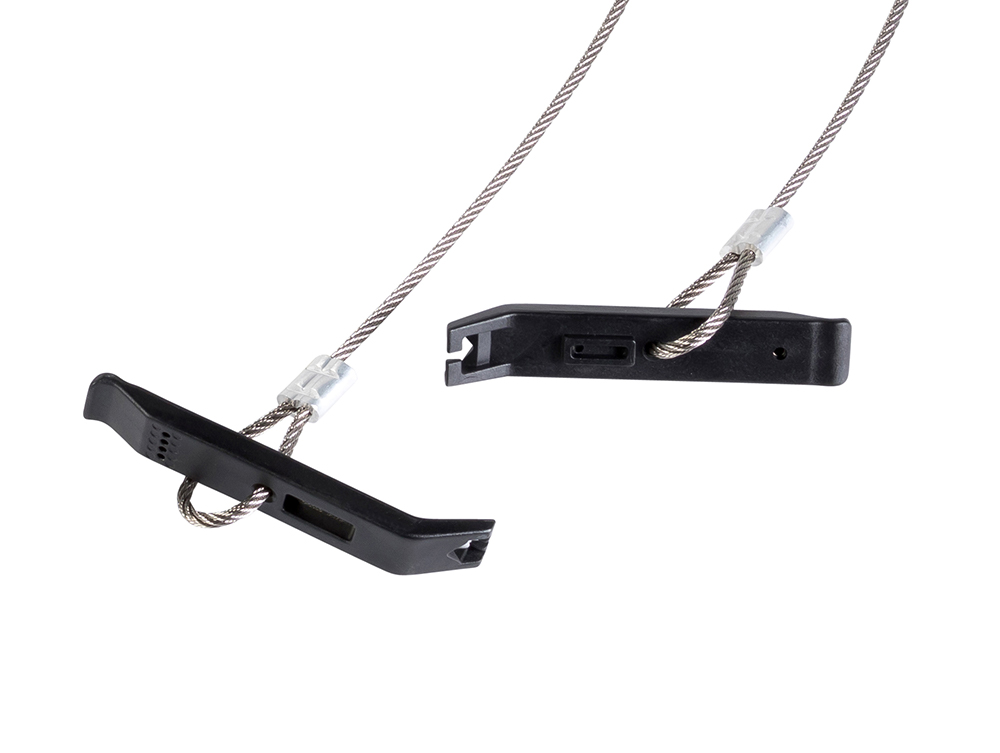

  • 2 x tyre levers (plastic with steel core) - nylon coatedGaleria
Basic palette - powder coating
RAL 9010

Pure white

RAL 7035

Light grey

RAL 7001

Silver grey

RAL 9006

Silver metallic

RAL 7016

Anthracite grey

RAL 9005

Jet black

RAL 1021

Colza yellow

RAL 2008

Bright red orange

RAL 3020

Traffic red

RAL 4010

Telemagenta

RAL 4004

Claret violet

RAL 6018

Yellow green

RAL 6005

Moss green

RAL 5012

Light blue

RAL 5015

Sky blue

RAL 5017

Traffic blue

RAL 5002

Ultramarine blue

RAL 5003

Sapphire blue

Our products can be powder coated in many colours from the RAL palette – after checking the availability.

Basic palette - thermoplastic coating
RAL 9016

Traffic white

RAL 7035

Light grey

RAL 7001

Silver grey

RAL 9006

Silver metallic

RAL 7016

Anthracite grey

RAL 9005

Jet black

RAL 1021

Colza yellow

RAL 3020

Traffic red

RAL 6005

Moss green

RAL 3009

Oxcide red

RAL 1015

Light ivory

RAL 5017

Traffic blue

RAL 5015

Sky blue

Thermoplastic coating is the most comprehensive solution on the market. It provides the highest level of resistance against the influence of environmental factors, wear, damage and vandalism. It also requires little maintenance. It is recommended as a coating for our galvanized products.
More information »





Despite all efforts to keep the most accurate colour representation possible,
our palette is used for informational purposes only.
The best colour representation can be found in samplers.

Place your logo for free!

We can place your logo / graphics on our products to take care of your brand image.

See our portfolio

PRODUKT ZAREJESTROWANY W EUIPO no. 8818397

Posiadamy prawo pierwszeństwa rejestracji w Urzędzie Unii Europejskiej ds. Własności Intelektualnej (EUIPO) w Alicante wzoru przemysłowego. Nabyliśmy wyłączne prawo do używania wzoru na całym obszarze UE.
