IBOMBO E-HUB
Polish product

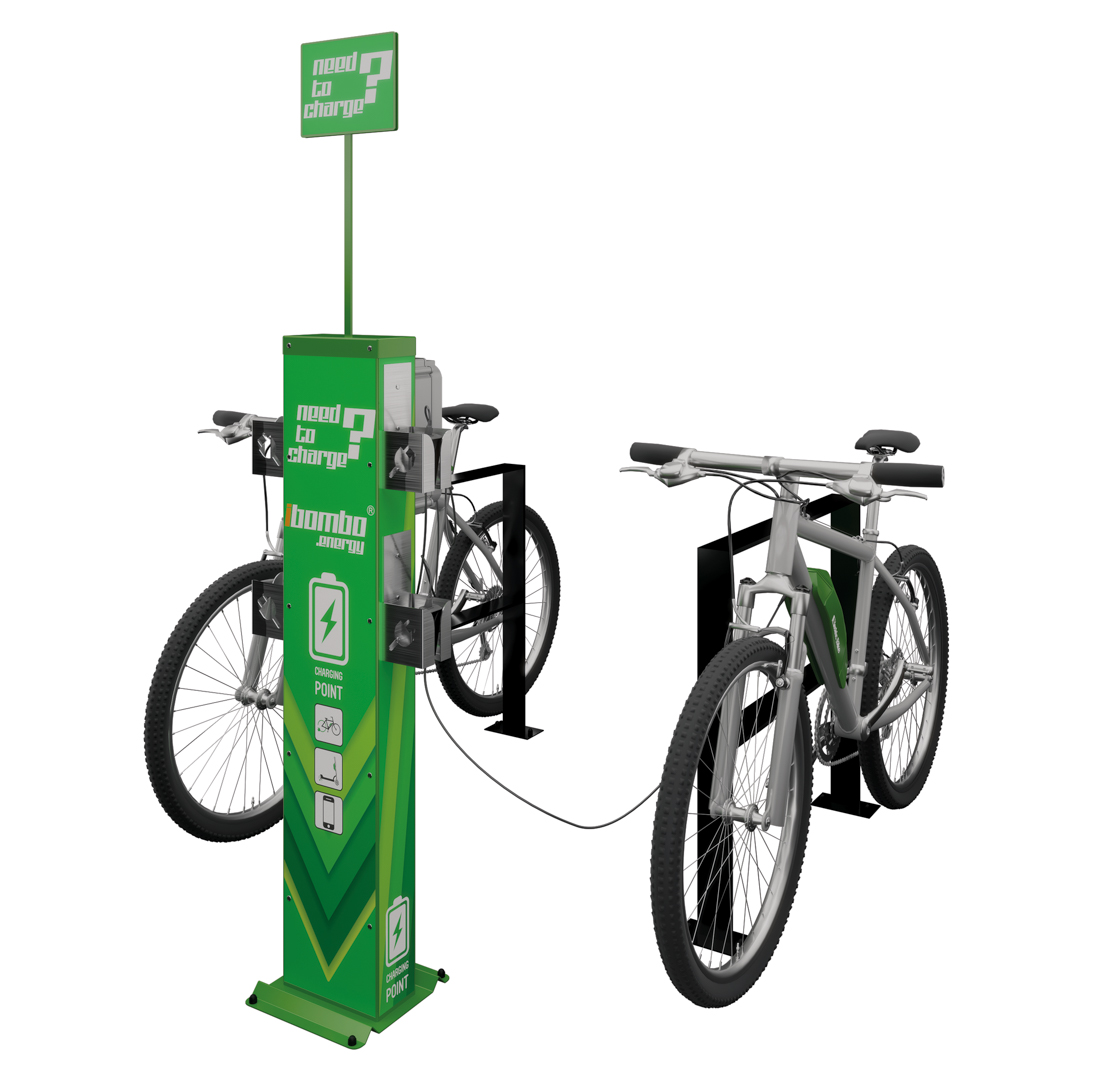

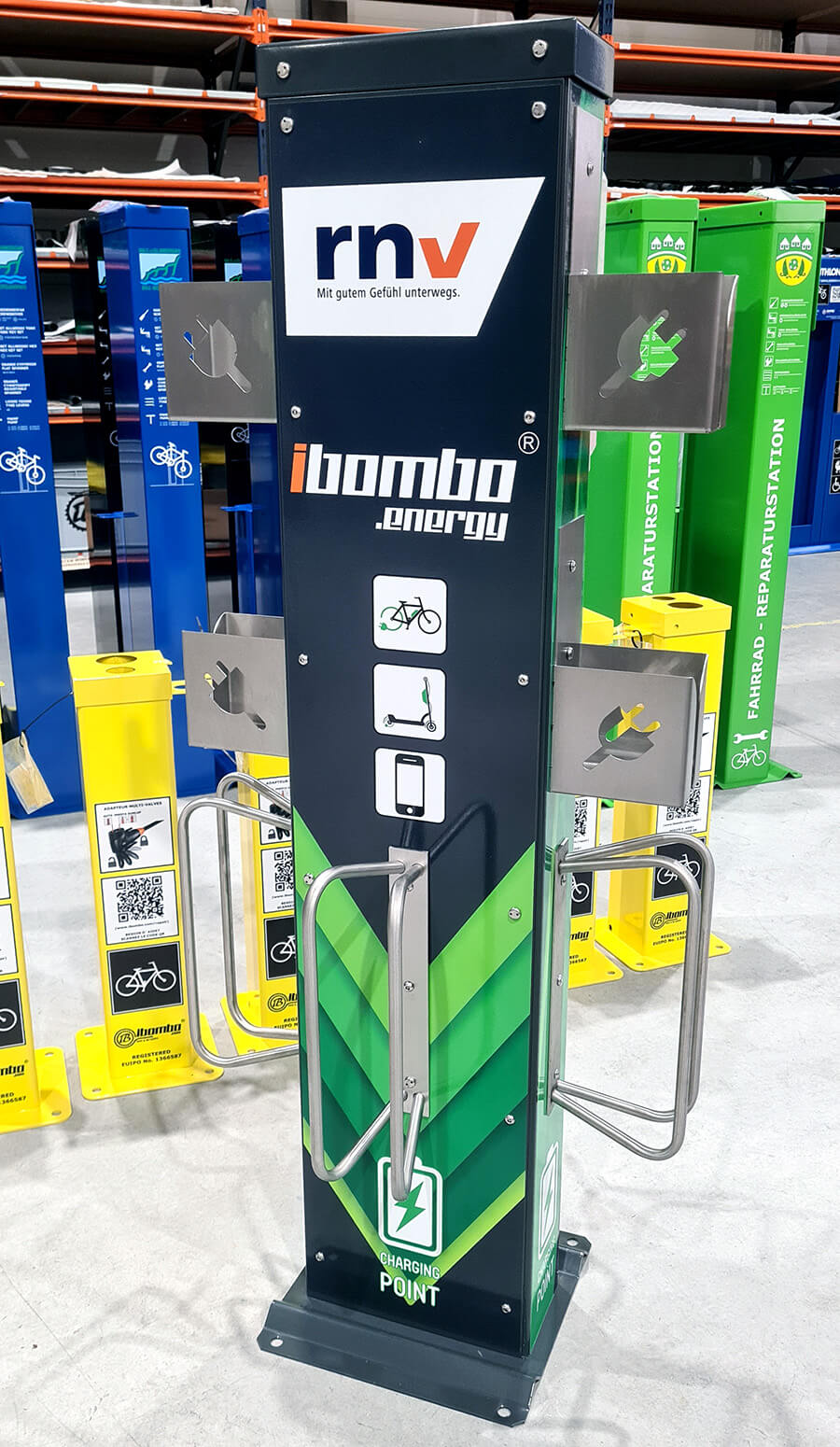

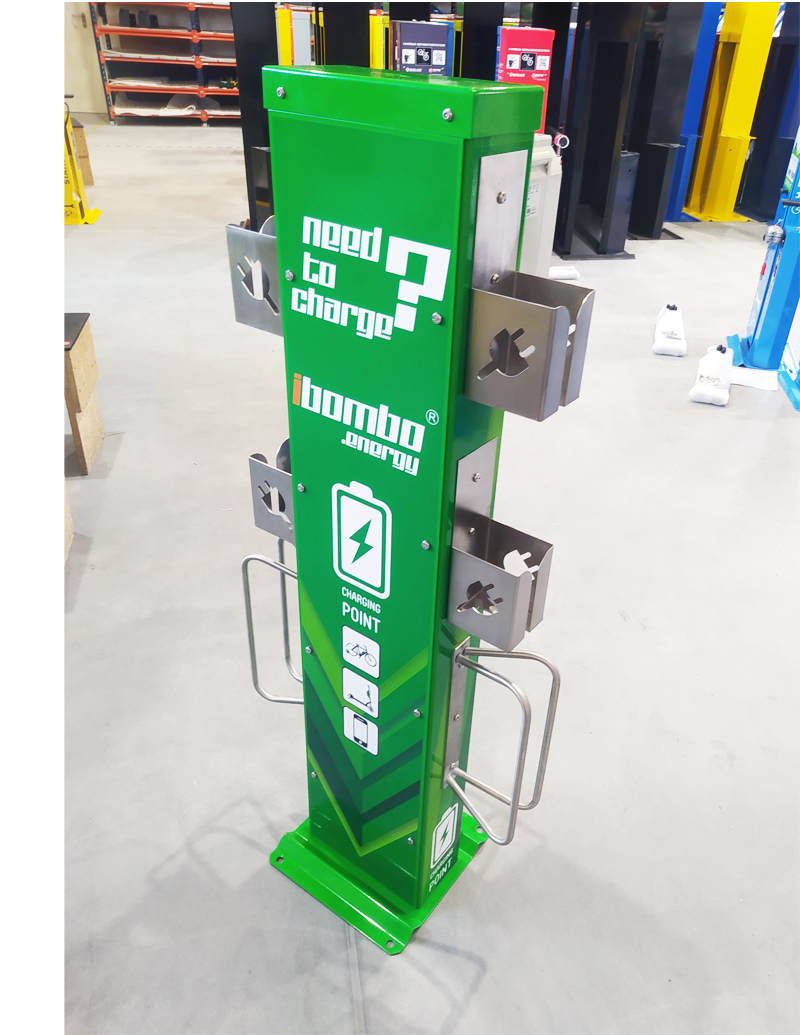

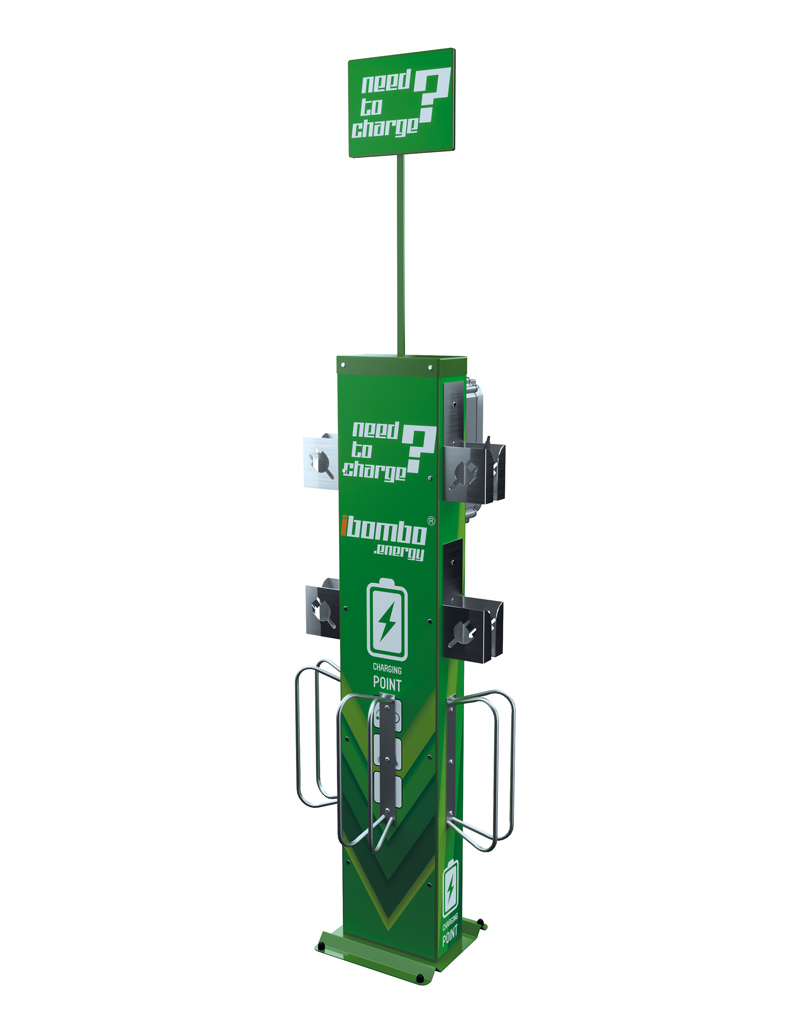

IBOMBO E-HUB Electric Bike Charging Station is adapted for indoor and outdoor use in public spaces. Its housing is made of galvanized steel with powder or thermoplastic coating. The device is mounted to the ground. Sheet metal elements and the E-BIKE charging module are fastened with anti-theft screws – the bits for the screws will be handed over to the customer.

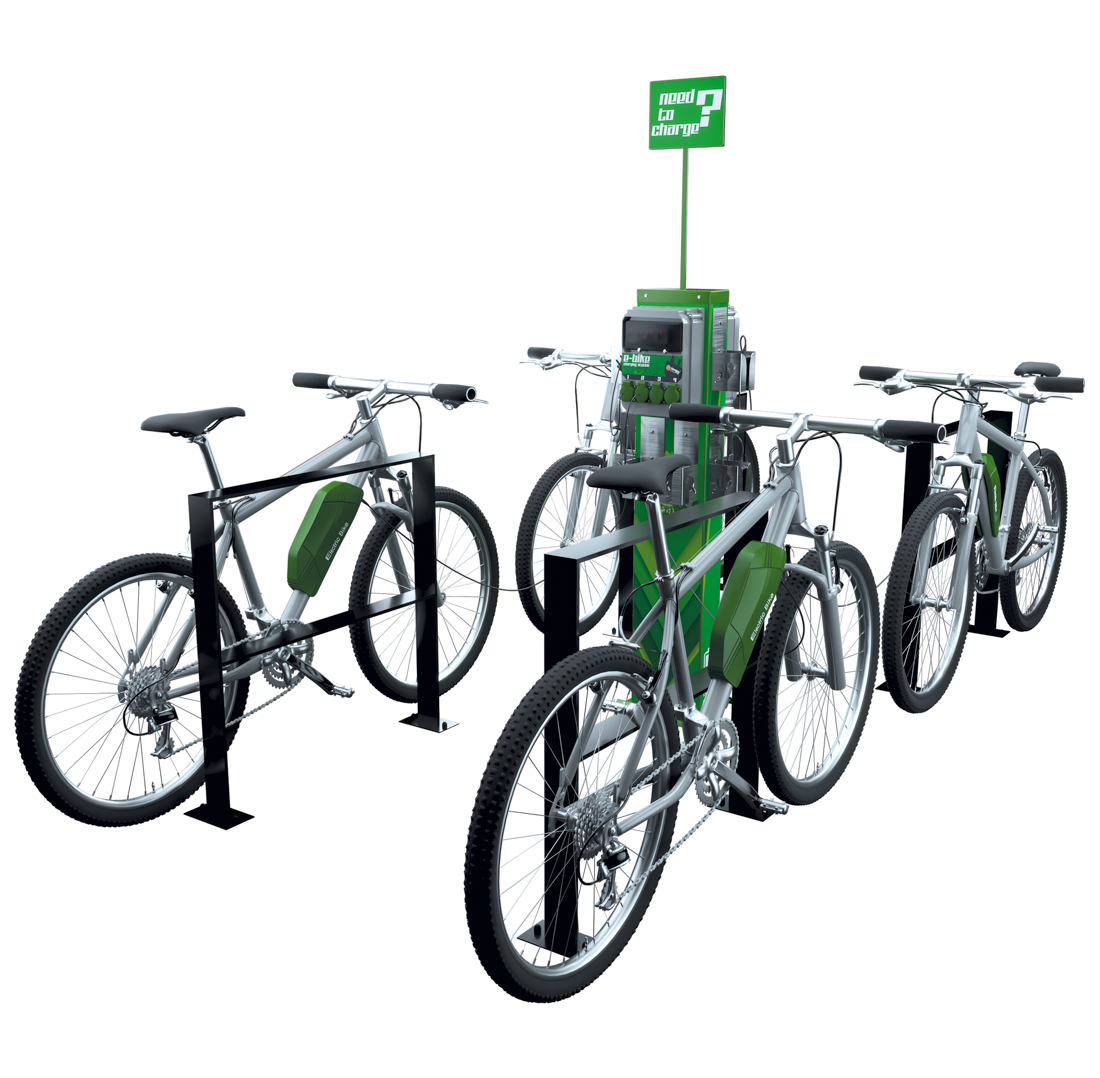

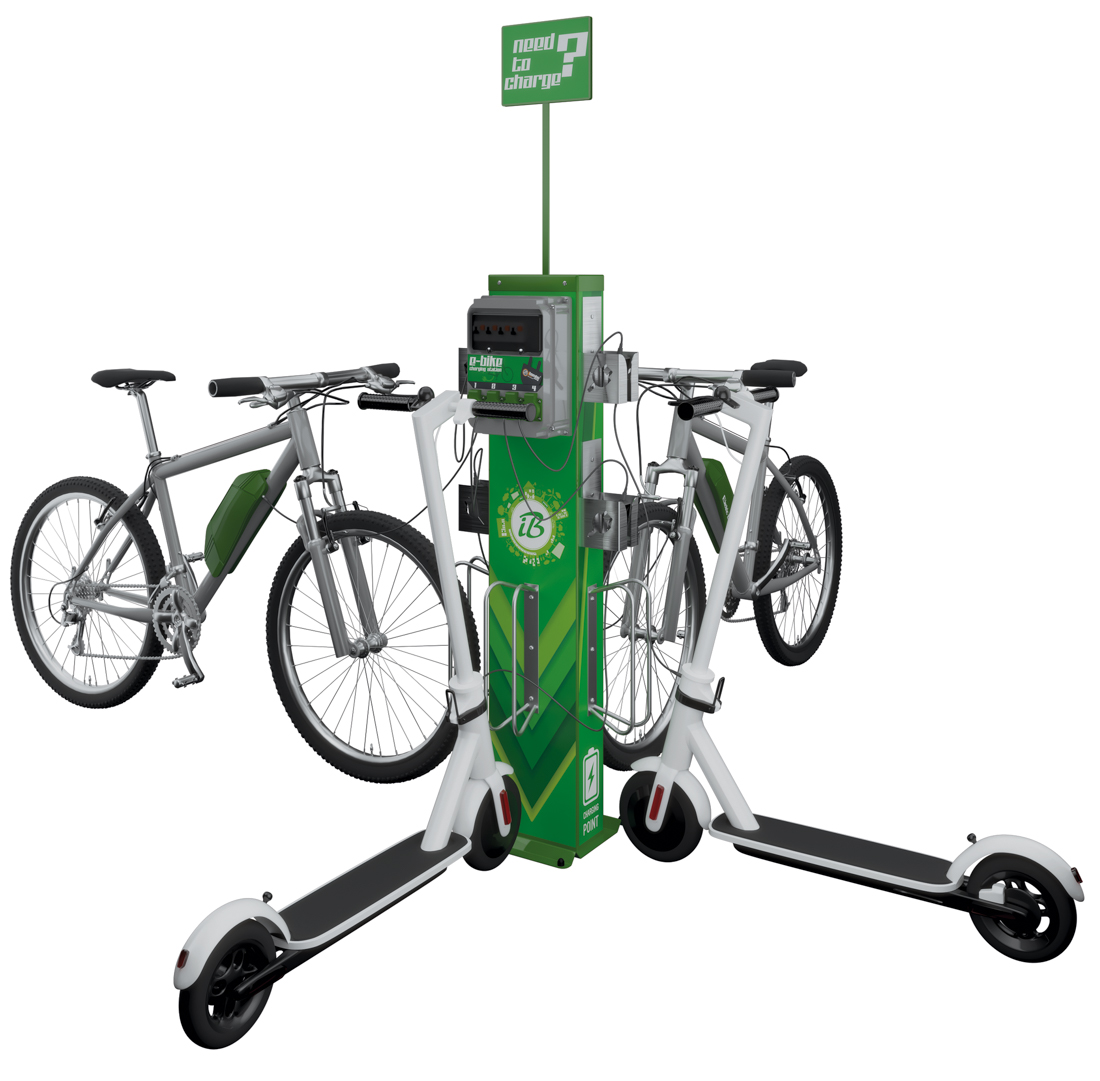

In the basic version the device has a module with 4 x sockets (250V) for charging electric bikes and 4 x stainless steel holders for chargers. This product can be extended to 8 x sockets (250V), bike stands and other accessories.

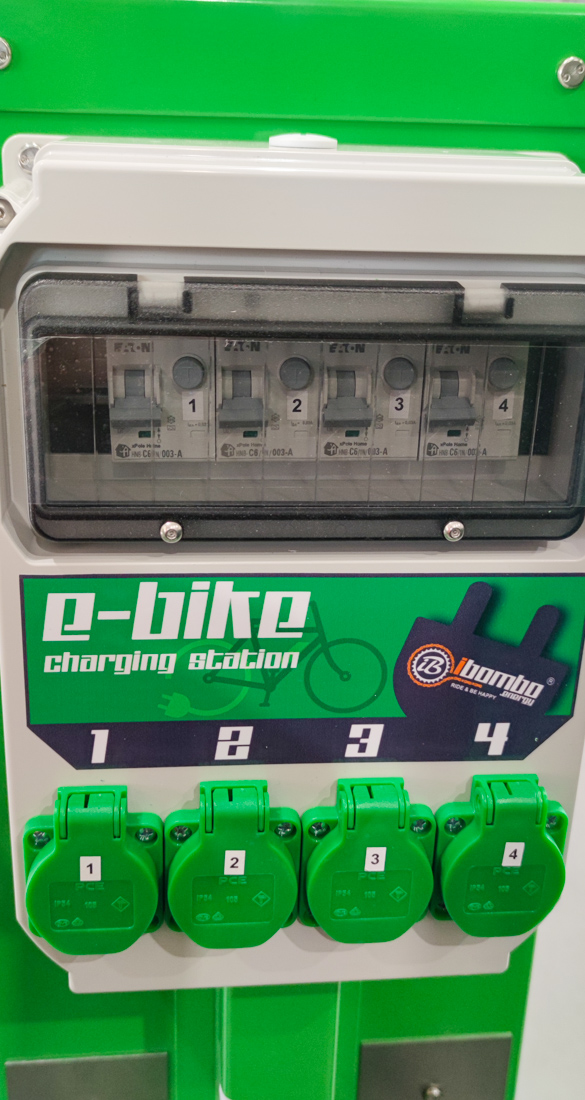

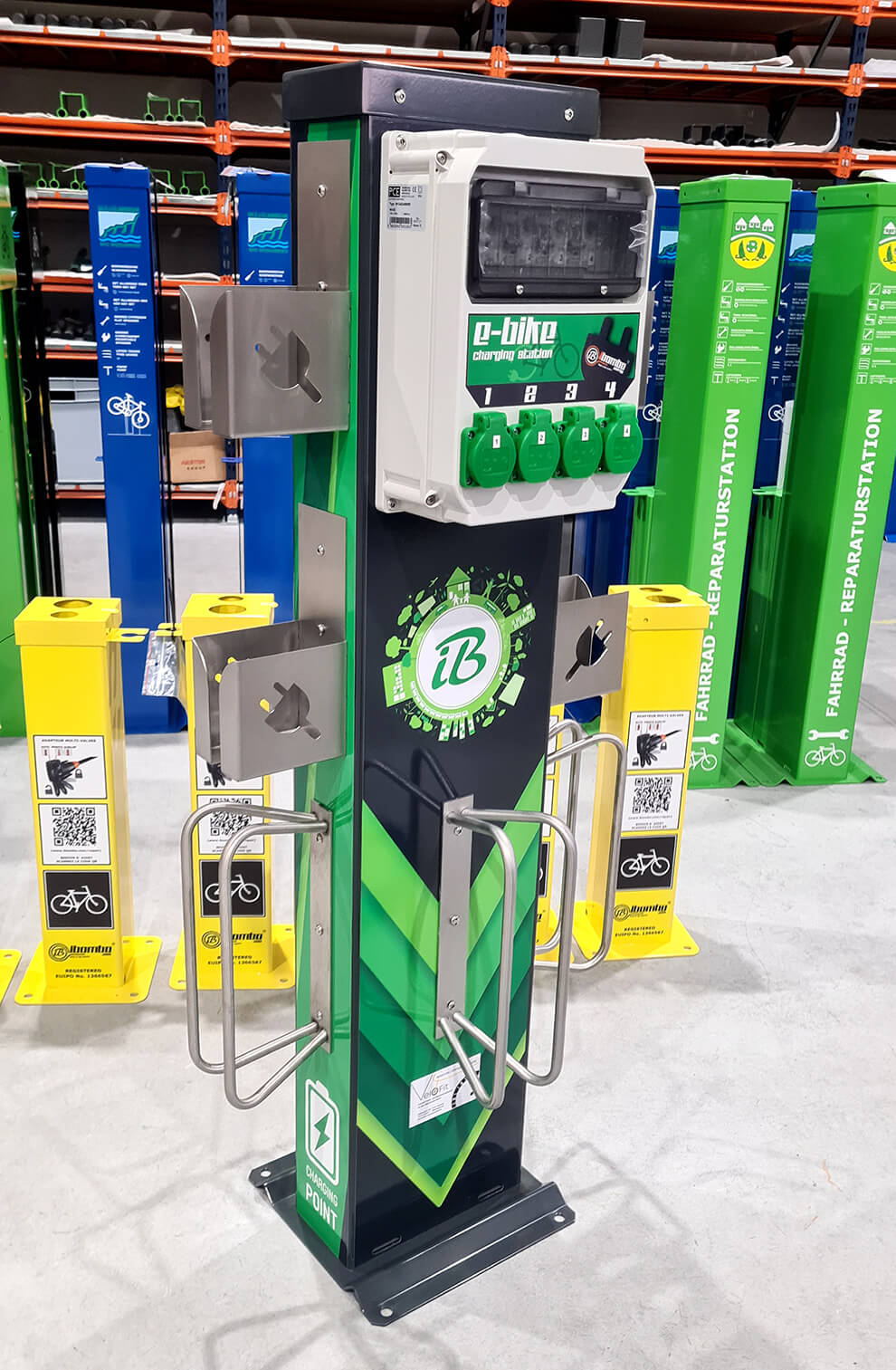

The E-BIKE charging module has a compact housing made of high-strength PC / ABS; it has additional RCBO (6A) protection located behind a protective, impact-resistant window. All external parts are made of stainless steel. The sockets (250V) are made of polyamide (PA6) with nickel-plated contacts (IP54).
A safe and convenient complement to the E-BIKE charging module will be our bike racks » CLASSIC SERIES » SILICONE PROTECT.
The E-BIKE module complies with European standards:
Directive (RoHS) 2011/65 / EU and 2015/863
2014/35 / EU Low Voltage Directive
Electromagnetic Compatibility (EMC) Directive 2014/30 / EU
Used standards: EC / EN 61439-1; IEC / EN 61439-4

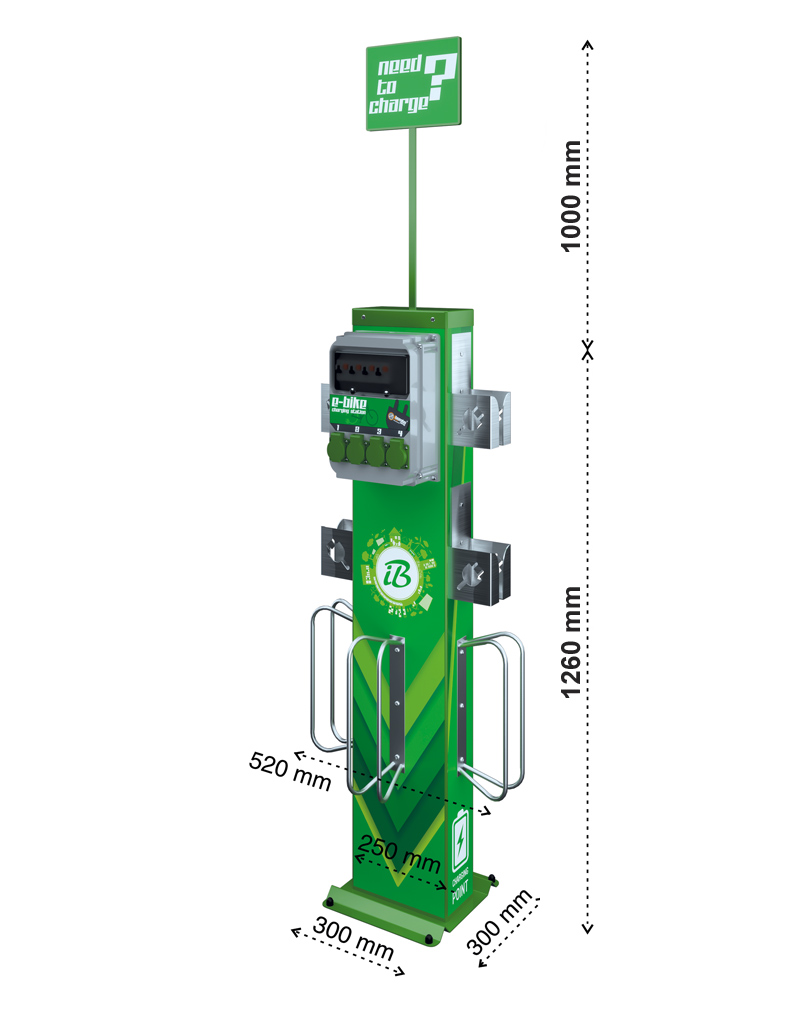

Dimensions:
126/226 x 54 x 41 cmWeight:
30-40 kgAdvertising area:
up to 8000 cm2Material:
: galvanized- housing made of galvanized steel
- powder or thermoplastic coating
- up to 8000 cm2 of advertising area
-

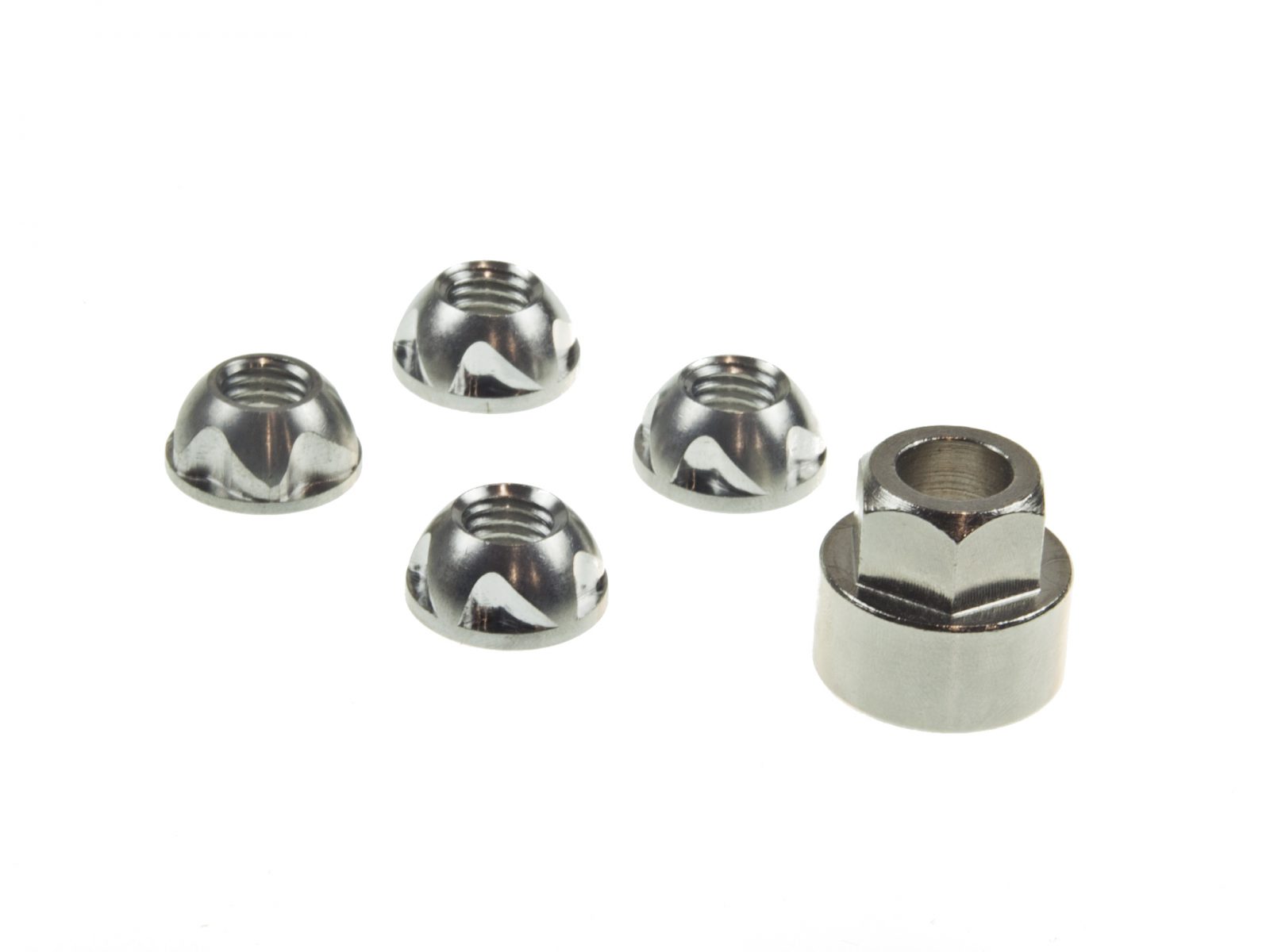

anti-theft stainless steel nuts (AISI 304) with a patent key for mounting the base
anti-theft stainless steel nuts (AISI 304) with a patent key for mounting the base
-
1 or 2 E-BIKE charging modules
1 or 2 E-BIKE charging modules
-

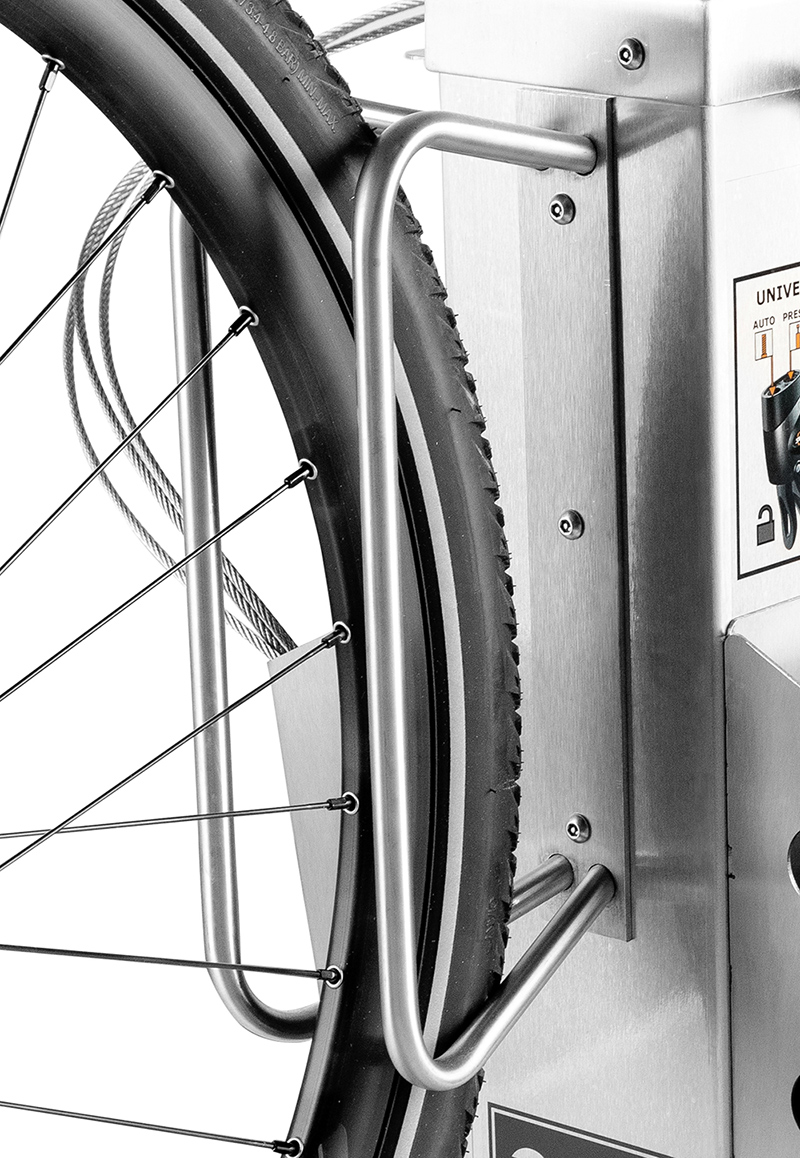

4 x small side-or-back bike stand - stainless steel (AISI 304)
4 x small side-or-back bike stand - stainless steel (AISI 304)
-
4 x holders for E-BIKE chargers
4 x holders for E-BIKE chargers
-

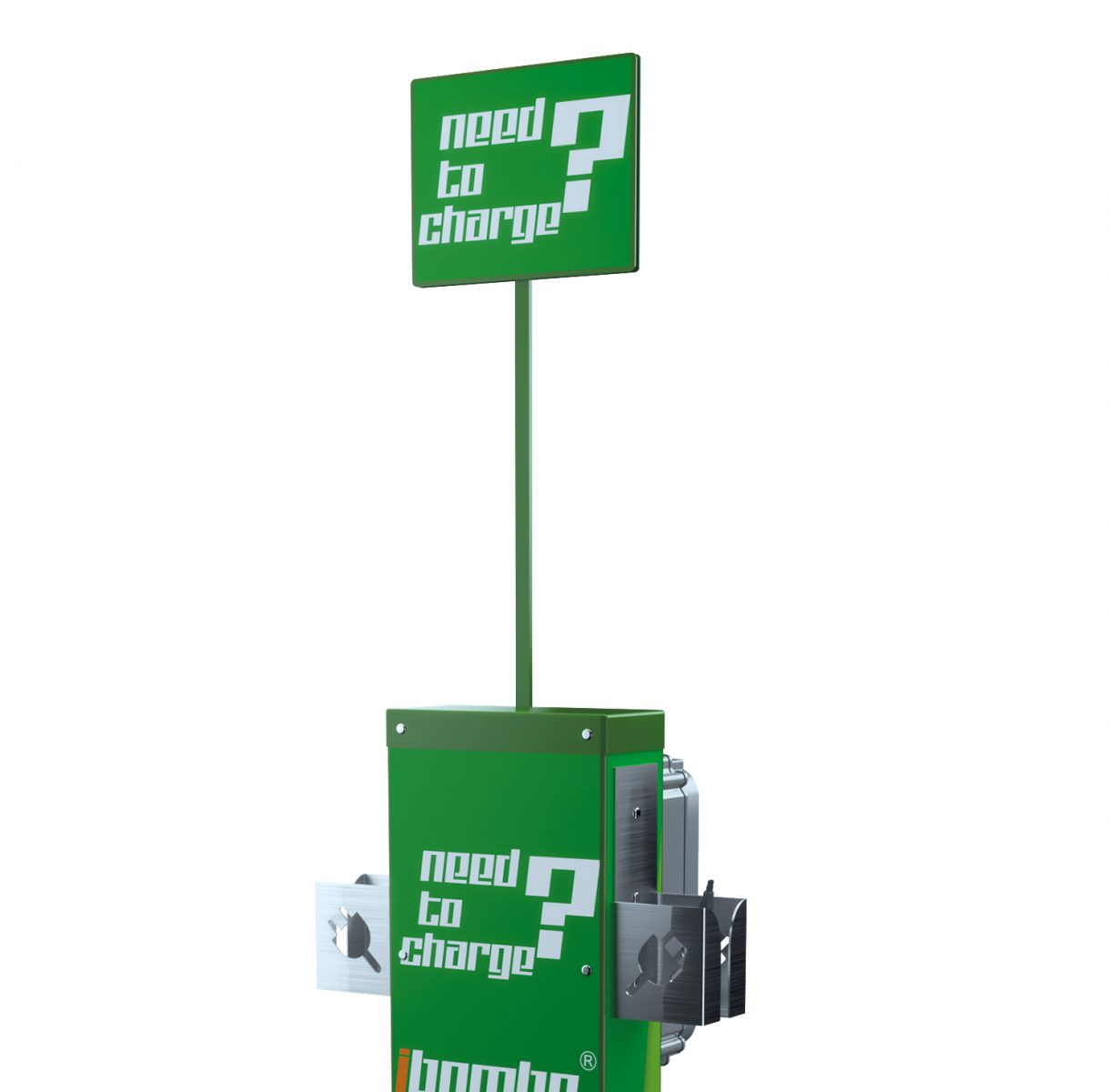

1 x stand with an E-BIKE information plate
1 x stand with an E-BIKE information plate
Pure white
Light grey
Silver grey
Silver metallic
Anthracite grey
Jet black
Colza yellow
Bright red orange
Traffic red
Telemagenta
Claret violet
Yellow green
Moss green
Light blue
Sky blue
Traffic blue
Ultramarine blue
Sapphire blue
Our products can be powder coated in many colours from the RAL palette – after checking the availability.
Traffic white
Light grey
Silver grey
Silver metallic
Anthracite grey
Jet black
Colza yellow
Traffic red
Moss green
Oxcide red
Light ivory
Traffic blue
Sky blue
Thermoplastic coating is the most comprehensive solution on the market. It provides the highest level of resistance against the influence of environmental factors, wear, damage and vandalism. It also requires little maintenance. It is recommended as a coating for our galvanized products.
More information »
Despite all efforts to keep the most accurate colour representation possible,
our palette is used for informational purposes only.
The best colour representation can be found in samplers.
We can place your logo / graphics on our products to take care of your brand image.
See our portfolio
PRODUKT ZAREJESTROWANY W EUIPO no. 8819403
Posiadamy prawo pierwszeństwa rejestracji w Urzędzie Unii Europejskiej ds. Własności Intelektualnej (EUIPO) w Alicante wzoru przemysłowego. Nabyliśmy wyłączne prawo do używania wzoru na całym obszarze UE.
